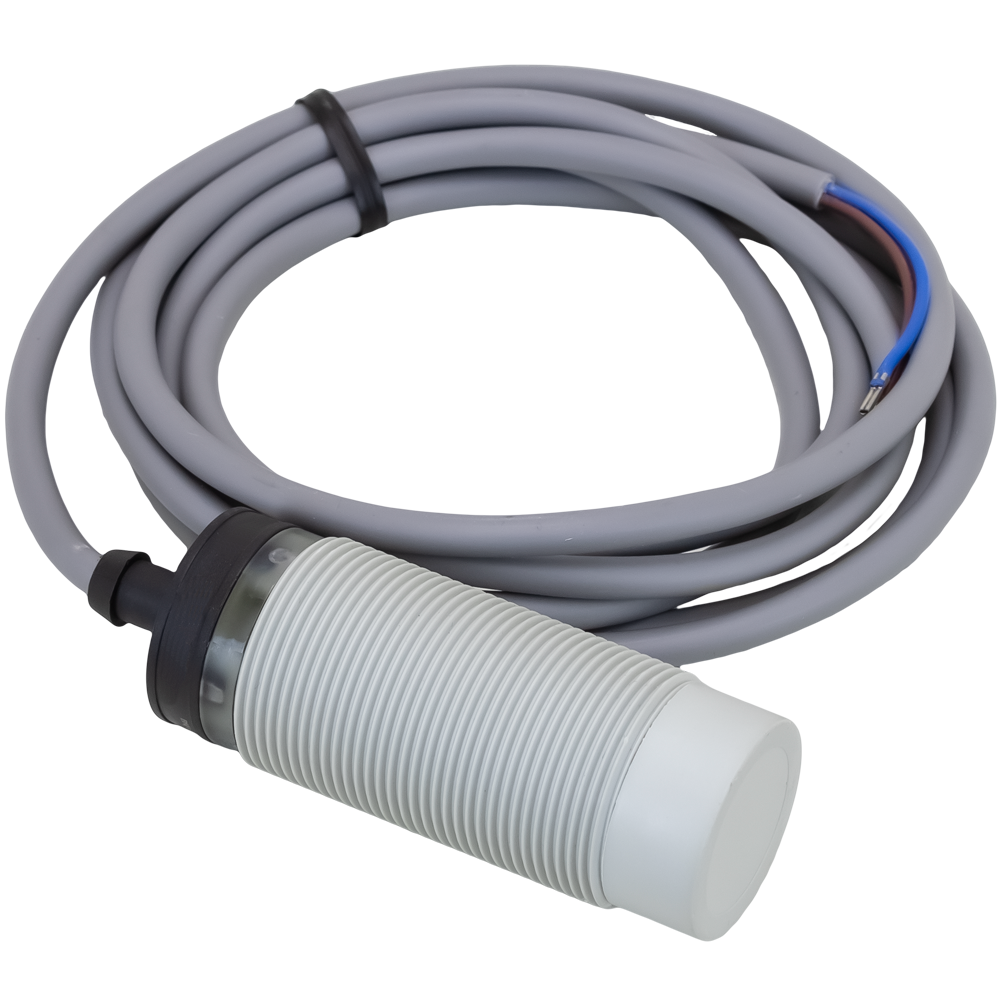

This Hog-Gro capacitive sensor features a M30 x 1.5 plastic thread and an operating voltage of 20-250V AC/DC operates as normally open. The sensing range is adjustable from 3-15mm with non-flush installation. This capacitive sensor comes with 78" pre-wired PVC cable. Due to the increased protection rating IP67, the detection of dry bulk materials, liquids, metals and non-metal objects is possible without an issue.

Model: CSP1

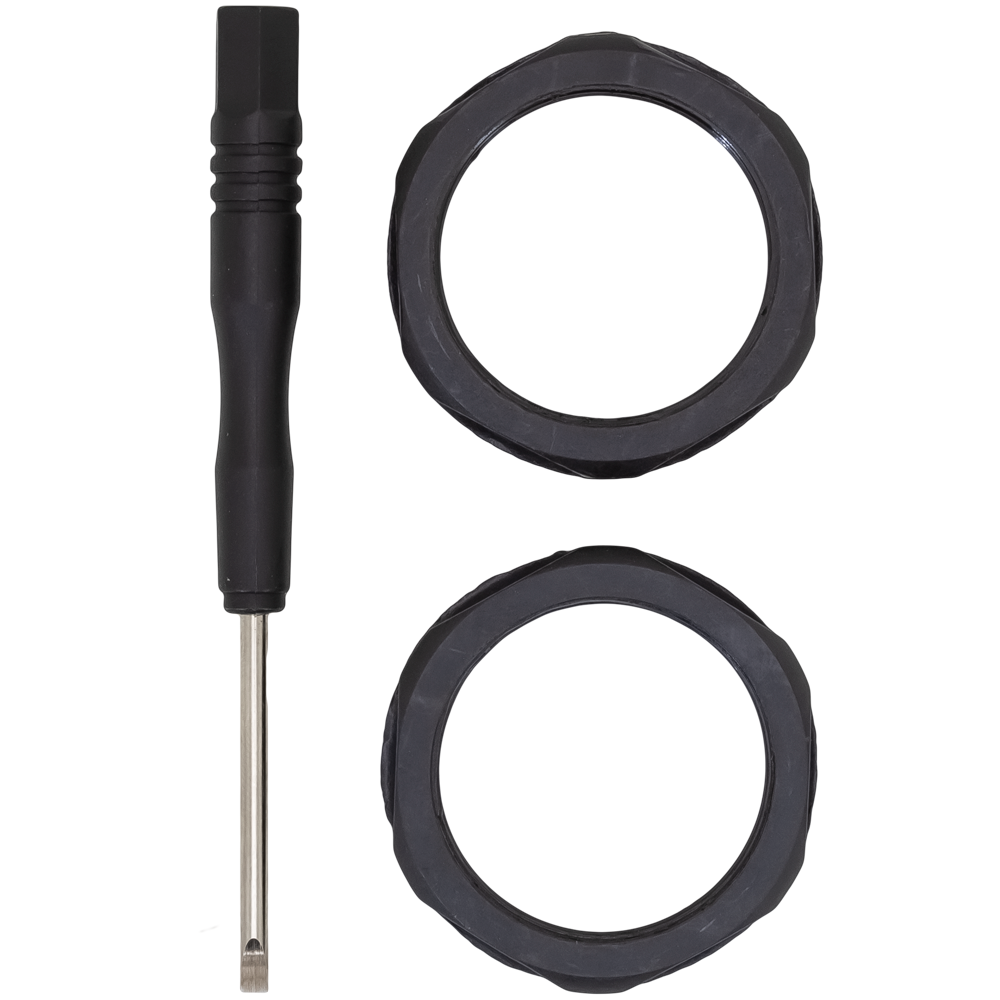

Easy setting of the sensing range via potentiometer
Sensing distance of up to 15mm
20-250VAC/DC
AC/DC 2wires NC
Frequency: AC:15Hz, DC:40Hz
IP67 Rated
Surge protection
Connection: 78" PVC cable
CE and UL Listed

Replacement for AP® part number: FLX-4256
*Manufacturer part number for reference purposes only*

Details:

Mounting	Non-flush
Rated Range	10-15mm
Assured Range	8-12mm
Dimensions	1.17" OD x 3" Long
Output	AC/DC
Supply voltage	20-250 VAC/DC
Standard target	Fe 45451t
Switch-point drifts[%/Sr]	≤±20%
Hysteresis range(%/Sr)	3......20%
Repeat accuracy [R]	≤3%
Load current	AC:≤300mA DC: ≤100mA
Residual voltage	AC:≤10V DC: ≤8V
Leakage current(Ir)	AC:≤3mA DC: ≤1mA
Output indicator	Yellow LED
Circuit protection	Surge protection
Ambient temperature	-25℃…70℃
Ambient humidity	35-95%RH
Switching frequency [F]	AC:15Hz DC:40Hz
Voltage withstand	2000V/AC 50/60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistance	10…50Hz (1.5mm)
Degree of protection	IP67
Housing material	PBT
Connection type	78" PVC cable
