Part Description:

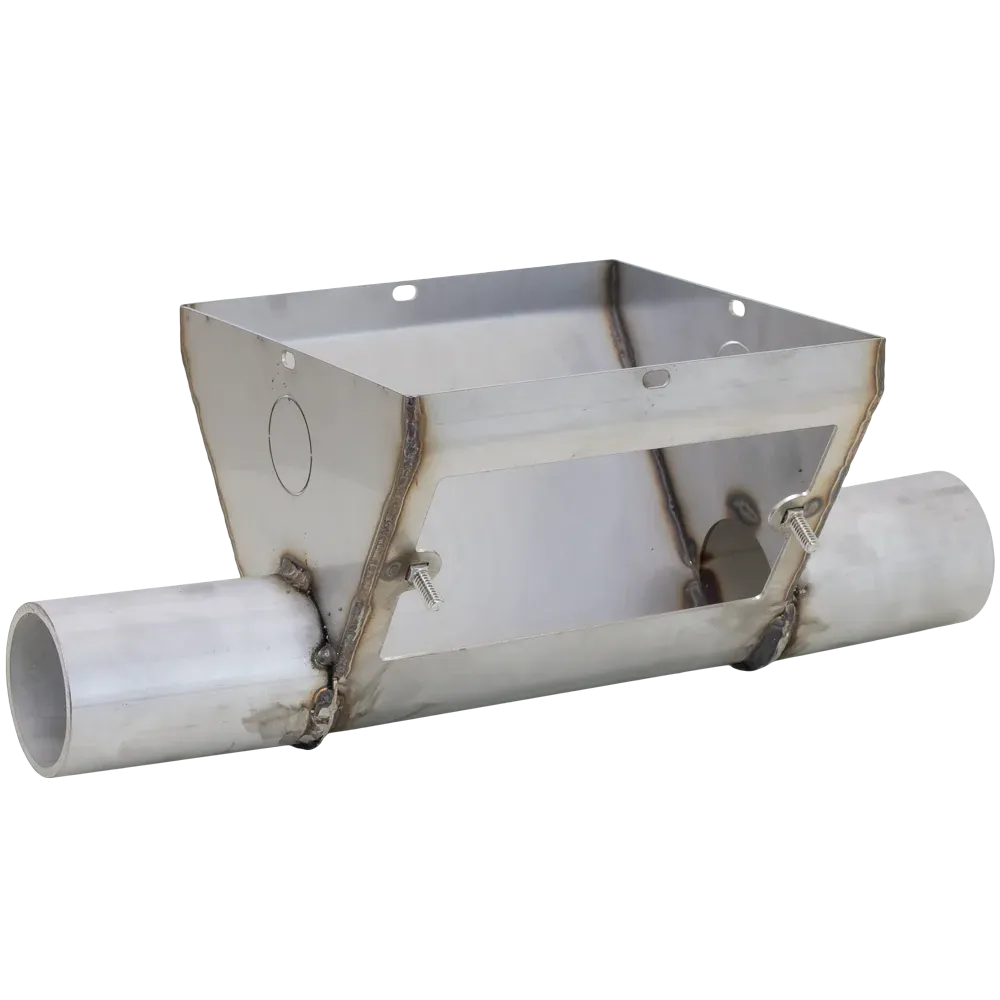

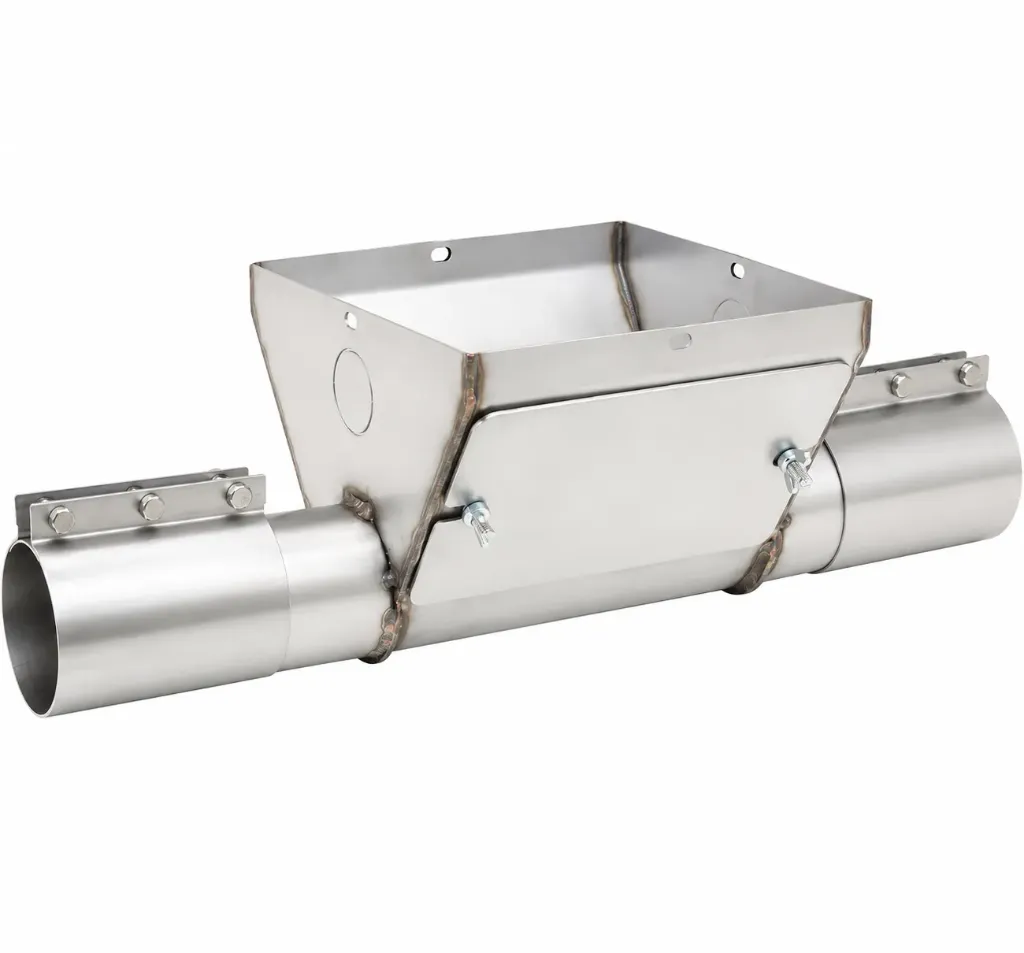

This Hog-Gro™ Feed fill hopper is mainly used in chain disk applications, it gets mounted directly under a flex auger control unit that then supplies the Hog-Gro™ chain disk system with feed. Incoming feed will be dropped into it and the chain disk system will then cycle the feed from there on.
- Made of 18.8 Stainless Steel
- Heavy 16 Gauge steel
- Easy to add and/or replace

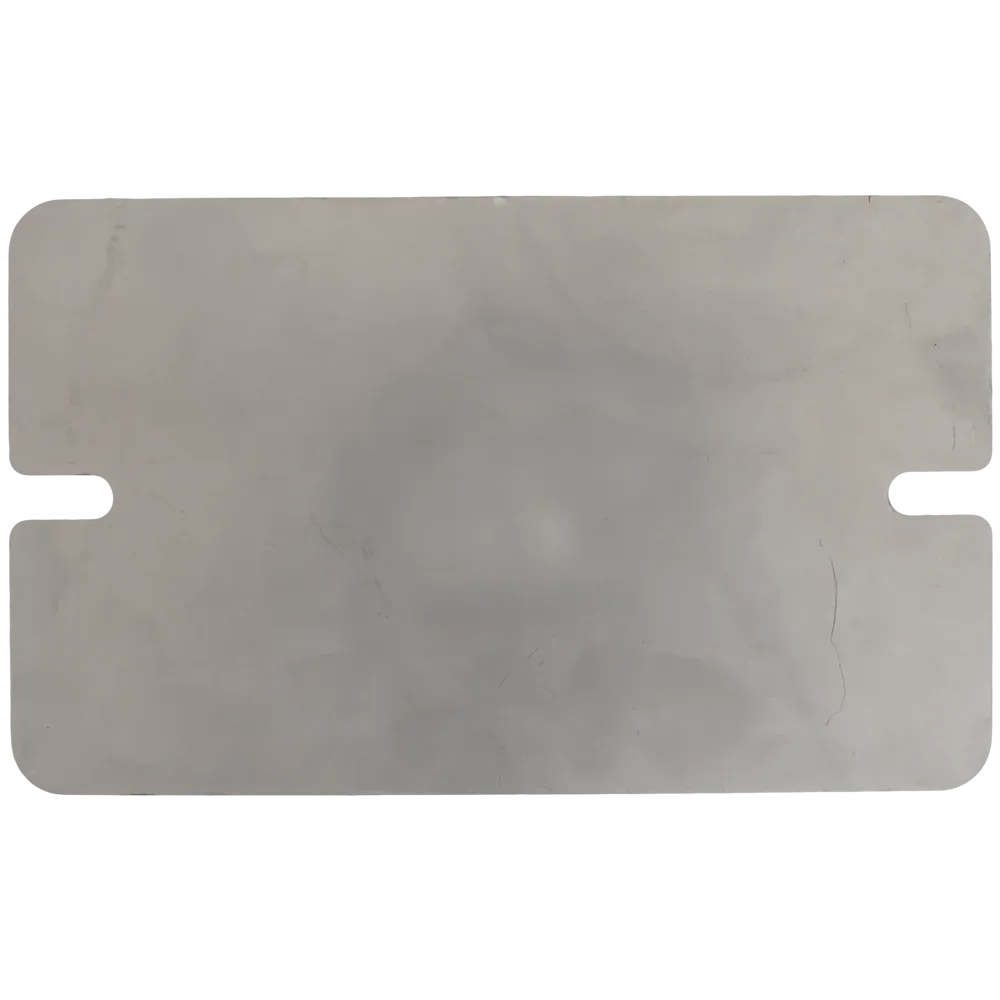

- Offers an Easy-Door access
- Offers 2 Pre-cut Nock-Out holes for easy sensor installation
Kit Includes:

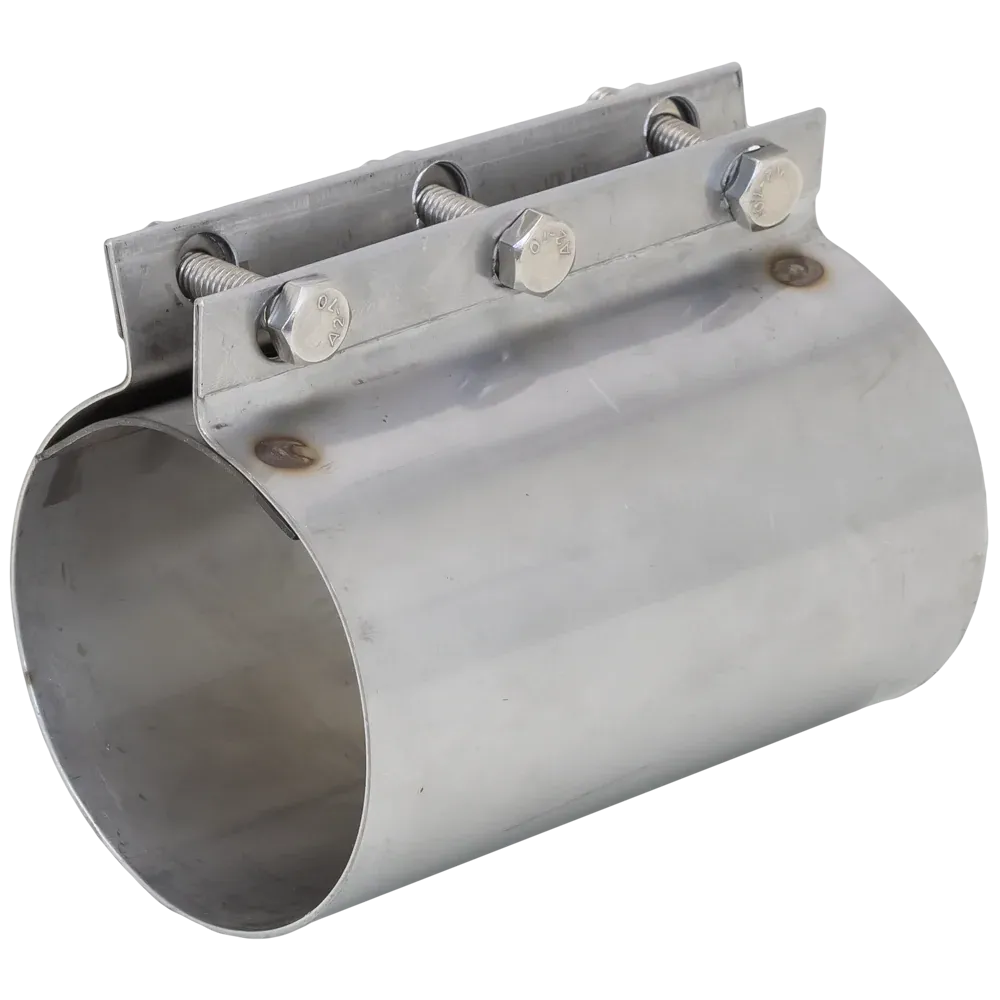

- (2)Chain Disk couplings 18.8SS
- (1) Fill Hopper Assembly 18.8SS
Details:
| Fits Pipe Size OD (in inches) | 2.3-2.5 |
| Flange mount ID (in inches) | 7-1/8 x 7-1/8 |
| Flange mount ID (in inches) | 7-1/4 x 7-1/4 |
| Product Length (in inches) | 15 |
| Country Of Origin | CN-China |
| Material | 18.8 Stainless Steel |
| Suitable For Use With | Model 236 Chain Disk System |
| Includes | 2 Couplers |
| Number of Pieces in a Box | 1 |
